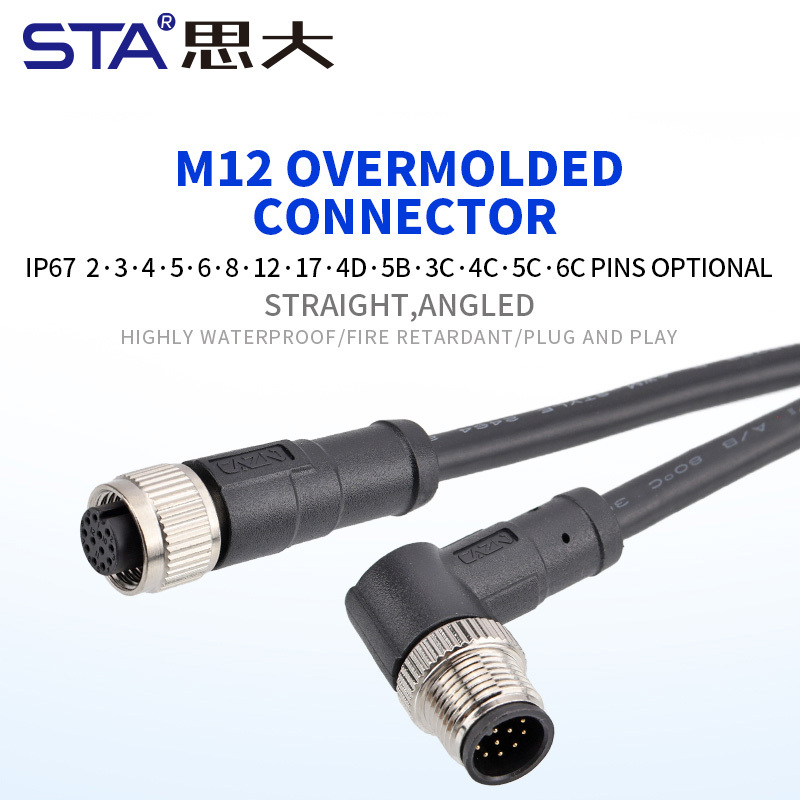

M12 Aviation Plug Unshielded Straight/Right Angle Male Female Overmolded Plug Connector with PVC/TPU Extension Cable

Name: M12 Aviation Plug Unshielded Straight/Right Angle Male Female Overmolded Plug Connector with PVC/TPU Extension Cable
Brand: Conector STA
Availability: InStock
Rating: 5 (1 reviews)

The M12 Overmolded Aviation Plug Connector provides a reliable and waterproof connection for industrial automation, sensors, and control systems. Available in 2, 3, 4, 5, 6, 8, 12, and 17-pin versions, it supports straight and right-angle male/female configurations. Each connector is pre-molded with a PVC or TPU cable, offering superior strain relief and durability. With IP67 protection, it ensures excellent resistance to dust, water, and vibration. Ideal for harsh environments, the M12 overmolded connector simplifies installation and guarantees stable signal and power transmission.

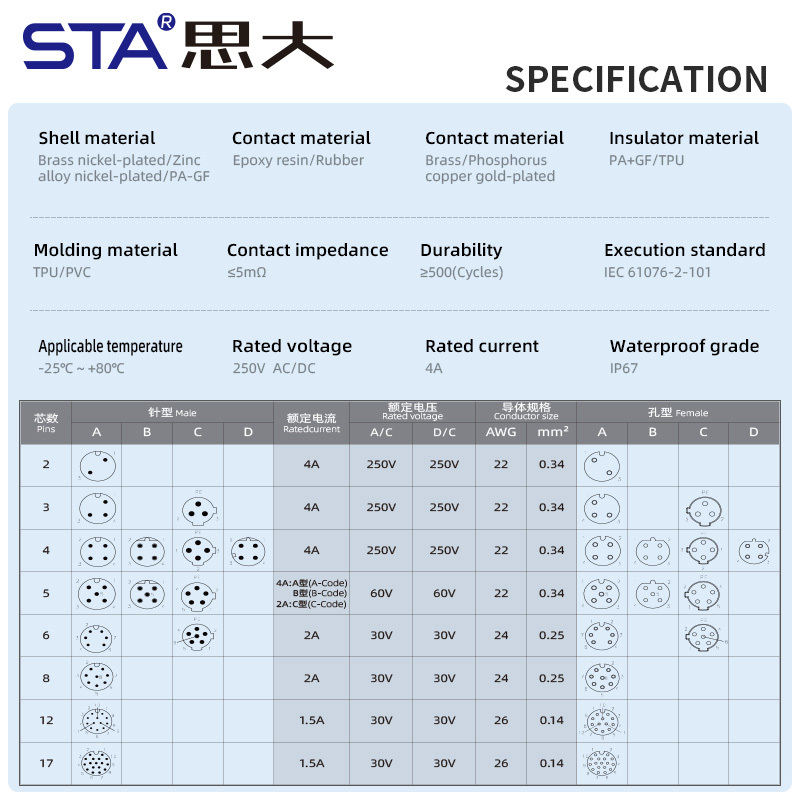

Connector Type

M12 Overmolded Aviation Plug Connector

Pin Count

2, 3, 4, 5, 6, 8, 12, and 17 pins

Connection Type

Straight / Angled, Male / Female

Cable Type

PVC / TPU / PUR

Rated Current

4A/2A/1.5A

Contact Resistance

≤5mΩ

Insulation Resistance

≥100MΩ

Temperature Range

-25°C ~ +85°C

Conductor Size

22/24/26 AWG

Socket

Front Mount Solder Type, Back Mount Solder Type and PCB board type

Shell Material

Brass nickel-plated / Zinc alloy nickel-plated

Contact Material

Brass / Phosphorus copper gold-plated

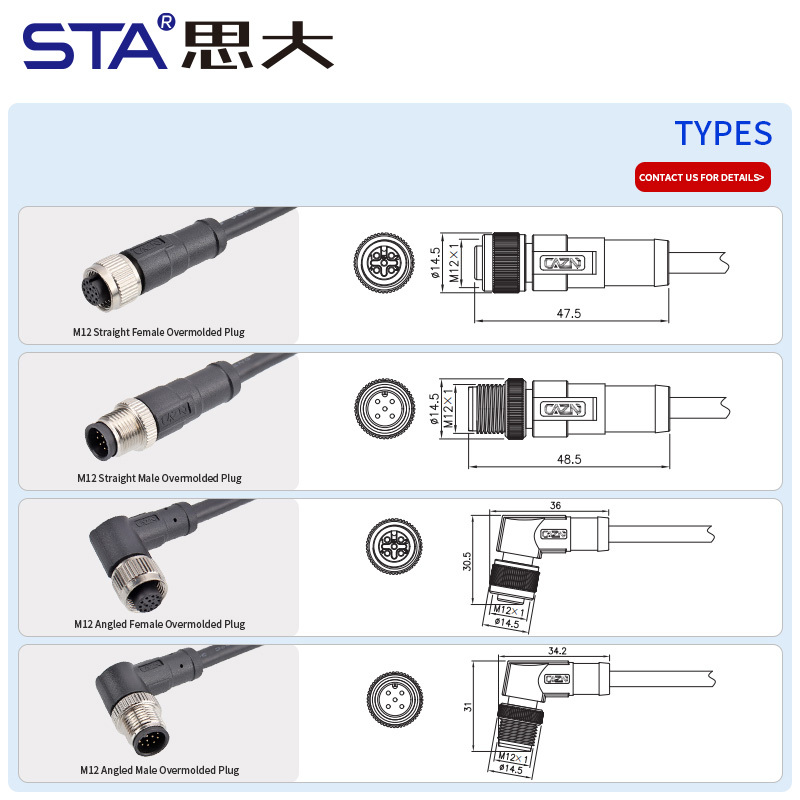

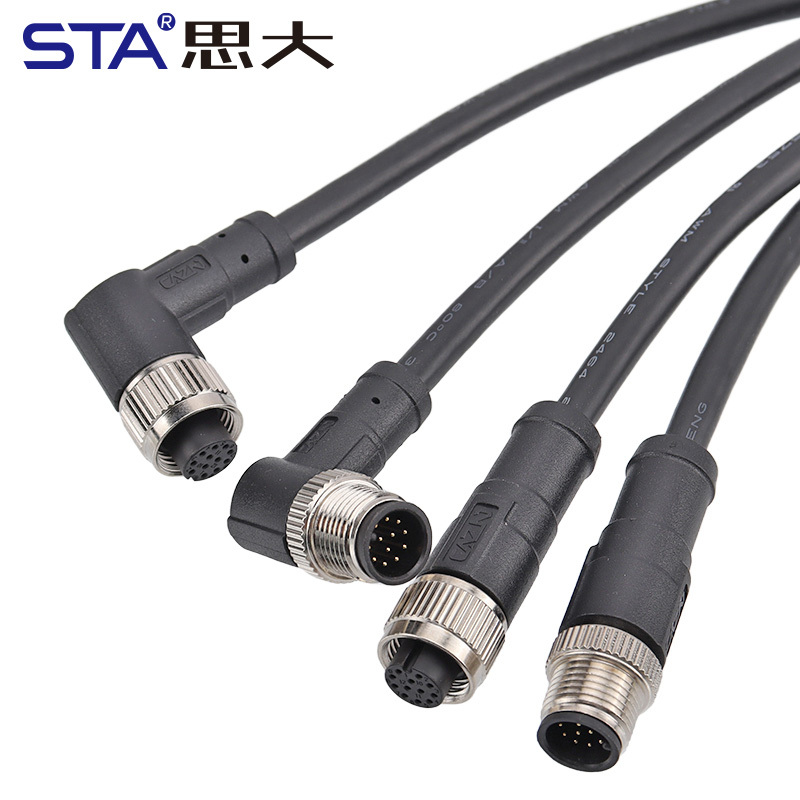

M12 Plug:

Straight Male Plug

Straight Female Plug

Angled Male Plug

Angled Female Plug

Pins/Code:

2 pin-A Code

3 pin-A Code

4 pin-A Code

4 pin-D Code

5 pin-A Code

5 pin-B Code

6 pin-A Code

8 pin-A Code

12 pin-A Code

17 pin-A Code

4 pin-C Code

5 pin-C Code

6 pin-C Code

Cable Type:

PVC

TPU

Cable Length:

Customized

SOLICITAR ORÇAMENTO

Descrição

Product Advantages

1. Integrated Overmolded Design for Durability

The connector and cable are injection-molded as one unit, ensuring strong strain relief, enhanced sealing, and long service life in demanding environments.

2. Multiple Pin Configurations (2–17 Pins)

Supports a wide range of signal and power transmission needs, suitable for sensors, controllers, and field devices in automation systems.

3. Flexible Cable Options: PVC / TPU

PVC cables are cost-effective for general use, while TPU cables provide superior flexibility and abrasion resistance for mobile or outdoor equipment.

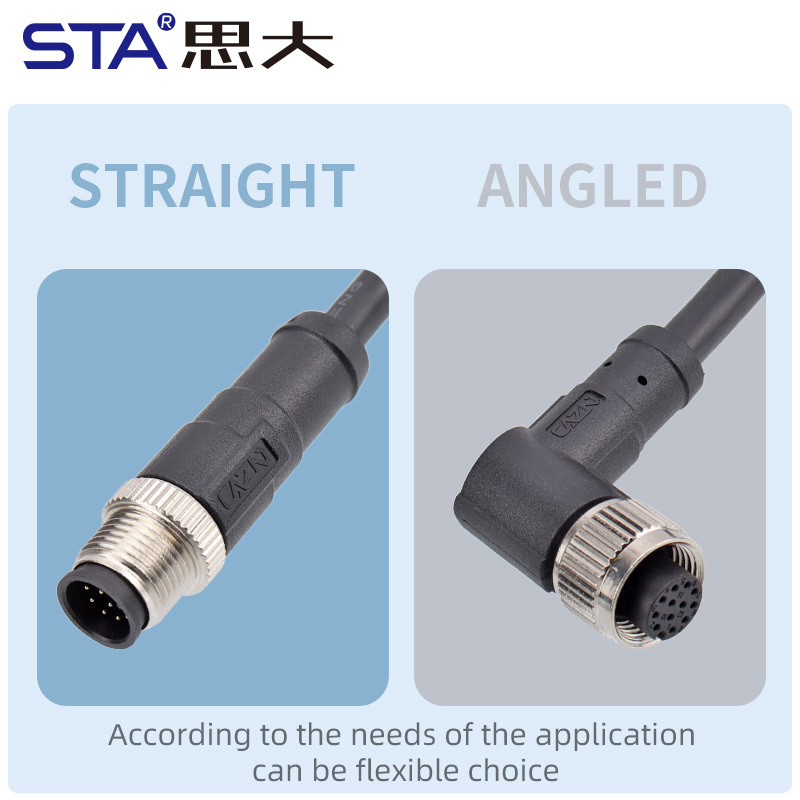

4. Straight & Right-Angle Versions Available

Both straight and 90° angled designs allow easy installation in tight or angled mounting spaces.

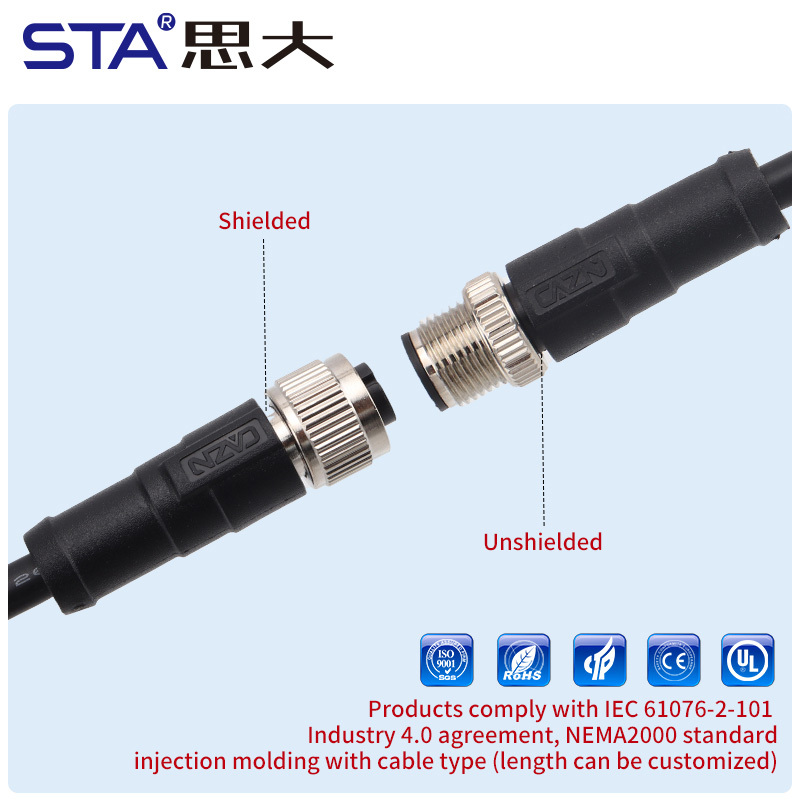

5. Waterproof and Reliable (IP67 Rated)

Precision-molded body with O-ring sealing ensures complete dust and water protection, ideal for harsh industrial environments.

Product Uses

1. Industrial Automation Systems

Reliable connection for sensors, actuators, and controllers on automated production lines.

2. Outdoor LED and Lighting Equipment

Ideal for outdoor displays and lighting control systems requiring IP67 waterproofing.

3. Robotic and Motion Control Devices

Ensures stable data and power transmission under vibration and movement.

4. Machine Vision and Field Instruments

Used in cameras, detectors, and control boxes for fast, secure signal transmission.

5. Transportation and Energy Equipment

Provides durable connections in electric vehicles, railway control, and renewable energy systems.
